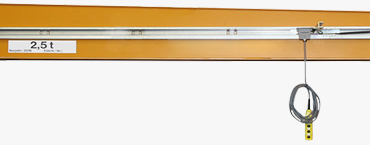

Directly mounted on crane girder. Compact design. Usable for all kinds of control devices for a wide range of functions. Free choice of cables, number of cores and cross section. chainflex® cables with smallest bend radii of down to 5 x d available. With a 36-month warranty*. Easy to move due to maintenance-free xiros® polymer ball bearings in the guide carriage.
My contact person
Vendortec Chile
Avda. Los Pajaritos 3195, Oficina 1410
Edificio Centro Maipú
Maipú – Santiago
+56 - 22 710 58 25
Send message
CL(ES)
igus® energy supply solutions for crane manufacturers and users
The main advantages of using igus® products:
Space-saving design
Higher clearance tolerances
No additional drives required
No additional drives or steel structures required
No control system required
energy chain system movement synchronised with trolley
Quick and easy assembly (guidefast guide trough)
Quick and easy installation and/or replacement of cables
High-speed data transmission using fibre optic cables (FOC)
All media types guided together in one system: energy, data and fluids
Easy maintenance reduces your downtime
No wearing parts
Spare parts guaranteed for ten years and more
TÜV tested
Safely guide control devices
Economical energy supply for crane girders and indoor cranes
Quickly installed as modular solution: The guidefast guide trough is fixed to the side of the crane girder. This avoids having to weld brackets onto crane girders during assembly. Assembly times are kept to a minimum as the guide trough only has to be hooked into the holder and then secured with the trough brackets. The small number of components and the fixed trough width also contribute easy assembly.
micro flizz®
System for the safe guidance of energy, data and airWith the micro flizz® system from igus®, you can implement long travels, with the smallest e-chains® without downtime. This compact, low-noise and cost-effective system enables the secure guidance of energy, data and air.
The benefits at a glance:
Maintenance-free alternative to busbar system
Lateral "wings" support in an extended position and pivot in the radius
Fast and easy installation with pre-harnessed chainflex® cables
Plastic spring dampens the rolling noise of the e-chain® in the flizz® channel: reduces noise emission
micro flizz® on indoor crane
Basic flizz®
The complete solution for long travelsWith the basic flizz® system from igus® you are protected against adverse environmental conditions. The cost-effective, fully enclosed complete solution is designed for travel distances of up to 100 m.
The benefits at a glance:
Glide bar integrated in the profile enables safe guidance: no damage to the cables
Quick and easy assembly, as the system can be opened along the outer radius
Easy retrofitting of cables or hoses possible at any time
Standardised, modular design
basic flizz® on indoor crane
igus® energy chain systems preassembled on the crane girder
Whether single girder or double girder cranes, roller or box girder section cranes, as well as overhead travelling, ceiling or boom cranes, igus® offers the ideal energy supply solution for all requirements, complete with flexible chainflex® cables, as an alternative to busbar systems, festoon systems or motor drums. The space-saving igus® e-chain system® made of high-performance plastics for trolley drive can be mounted either directly on the crane girder or on top of it easily and safely.
By using an igus® energy chain system, the cable loop station can be dispensed with. The entire girder length can be used for the trolley travel. The end of the girder is also the end of the energy chain system. All areas of the hall are accessible to the crane. No cables can get tangled. In the energy chain, all cables are safely guided with a defined minimum bend radius.
guidefast e-chain system® mounted on the side of the crane girder
e-chain system® mounted on the crane girder
End of the e-chain system® at the end of the crane girder
igus® offers a suitable energy supply solution also for crane tracks. igus® e-chains® provide great benefits for long travels. Rolling instead of gliding, glide rol e-chains® substantially reduced the drive power needed to move the energy chain. Travels of up to 800 m are possible. We will be happy to design your application free of charge and to work out the most cost-effective igus® solution taking account of your technical and operational safety requirements.
e-chain system® for a crane track, wall-mounted
Gliding e-chain system® in harsh environments
Long travel with aluminium trough for crane track
News
Product modules for indoor cranes
e-chains®, cables and accessoriesVisión general del sistema E4.1
Una solución para múltiples aplicaciones
Descripción general del producto E2/000
Dos piezas - La E2 estándar
Descripción general del producto E4/4
Alta estabilidad - montaje lateral - carreras muy largas.

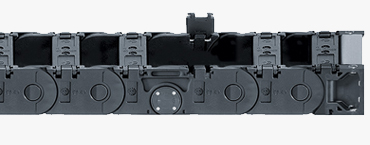

Resumen rol cadena portacables
Rodar en vez de deslizar: cadena portacables para carreras muy largas
Carriles de guiado
Los carriles de guiado son usados en carreras largas de entre 5 y 12 m, dependiendo de la cadena. Soportan la suave fricción de los sistemas de igus® e-chain® y E-Tubes.
Sistemas de alivio de tensión
Visión general de los sistemas de descarga de tensión

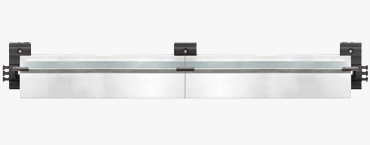

Carriles de guiado guidefast
Carriles de guiado guidefast con montaje lateral

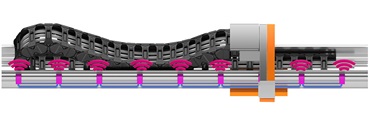

PPDS basic - Just switch off
Push/Pull force calculation as safety standard.

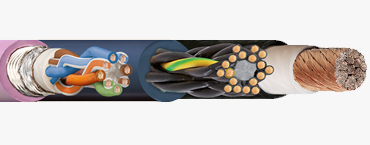

Cables chainflex® - resumen de producto
Informació, selección y pedido online
FTA extremo móvil flotante
FTA extremo móvil flotante compensa errores paralelos
Innovative products

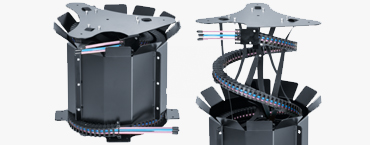

Cinta elevadora para aplicaciones verticales
Alternativa a la solución zig zag
Guidelok vertical, ahorra espacio
Versión estrecha guidelok «F»: guiado vertical y seguro de las cadenas portacables en los aprovisionadores de las estanterías
Visión general para las Cadenas Micro flizz®
Guiado seguro de energía, datos y aire

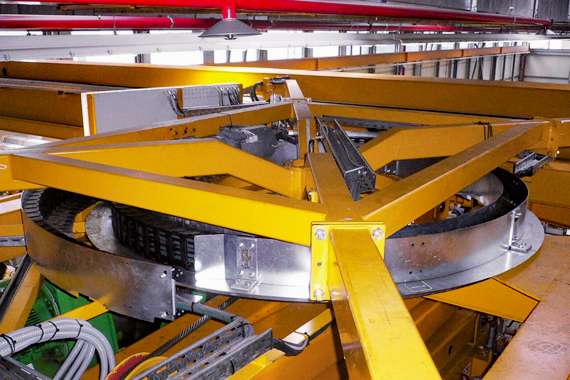

Rotation modules - High stacking
Realize circular motions up to 900° and more, even for high loads, using igus® rotation modules.

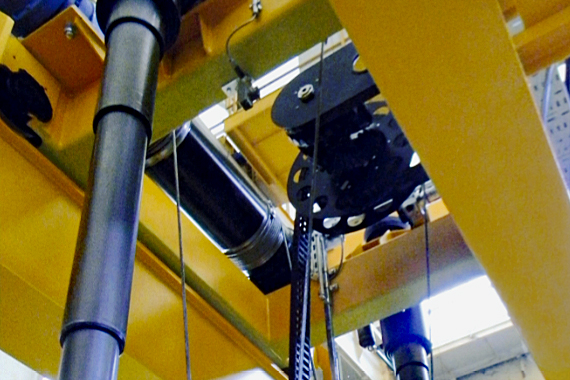

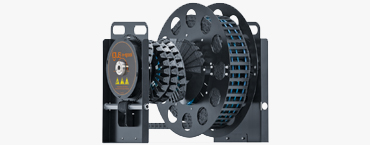

e-spool - Multi-Energy-Spool
The alternative to the cable drum - cable friendly and a secure guide for various media.
...Basic flizz®...
Protection against weather and dirt exposure – Cost-effective and fully enclosed complete solution, e.g. waste water treatment plants.
igus® services
igus® online tools
QuickChain.100 -
e-chain® expert
QuickChain.13 -
e-chain® selection for unsupported applications of up to 13 m
QuickFill -
interior separation
configurator for energy chains
QuickLife -
service life
calculation for e-chains®
3D-CAD
Indoor crane application examples
Indoor crane application examples (PDF)
