Small energy chains for small installation spaces

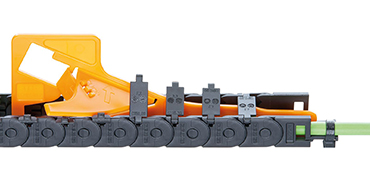

Stronger generation for smallest installation spaces

• Inner heights: 10 to 15 mm
• Available in three options:
  • Closed
  • Openable from both sides along the inner radius
  • Openable from both sides along the outer radius
• Integrated brake for especially smooth, quiet running
• 25% longer unsupported length and 100% higher fill weight in comparison to identical design
• Optional opener tool for even quicker opening and closing

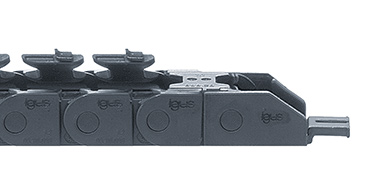

For smallest installation spaces with smallest inner heights

• Inner heights: 5 to 15.6mm
• Available in three options:
  • Closed
  • Openable along the outer radius
  • Openable along the inner radius with film hinge

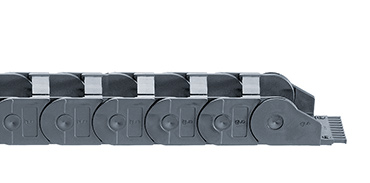

Very easy to fill and cost-effective

• Inner height: 5 to 48.5mm
• Available in two versions:
  • Fillable along the outer radius
  • Fillable along the inner radius
• Simply press in or pull out cables
• As available with multi-chamber design
• UL94-V2 classification

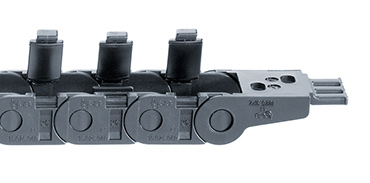

Small and very stable

• Inner heights: from 17 to 41mm
• Available in three versions:
  • Closed
  • Openable along the inner radius
  • Openable along the outer radius

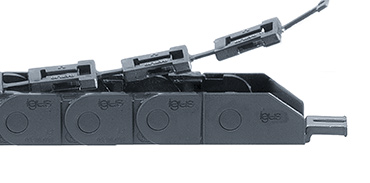

"Zipper-like" design for quick opened and closing

• Inner height: 9 to 32mm
• Crossbars on a strip along the outer radius
• Quiet running thanks to the chain links' small pitch
• Also available as a closed "tube version"
• iF Design Award for zipper-like design
